NHX 10000
Expert on machining of large and difficult-to-cut workpieces
Max. X-axis stroke
1,700 mm
Max. Y-axis stroke
1,400 mm
Max. Z-axis stroke
1,510 mm
Max. workpiece diameter
2,000 mm
Max. workpiece height
1,600 mm
Max. workpiece weight
3,000 kg
Control & software alternatives
MAPPS Fanuc

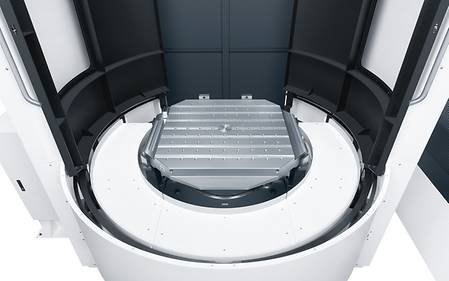

Highlights
High precision
- Driven at the Center of Gravity
- Box-in-Box construction
High speed
- Max. acceleration X-, Y- and Z-axes: 0.62 / 0.51 / 0.45 G {6.1 / 5.0 / 4.4 m/s2 (20.0 / 16.4 / 14.4 ft/s2)}
- Rapid traverse rate X, Y and Z-axes: 50 m/min (1,968.5 ipm)
- Cutting feedrate X, Y and Z axes: 50 m/min (1,968.5 ipm)
Outstanding cutting performance
- Standard spindle with an output of up to 40 kW (53.3 HP)
- Max. spindle torque: 1,413 N・m (1,042.2 ft・lbf) <10%ED> (option)
Application Examples
Automation
Standard automation and customised solutions in the VERTICO design
Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:
CPP
The entry-level flexible pallet storage solution for up to 4 machines
- Handling of workpieces up to ø 2,000 x 1,600 mm, 3,000 kg
- Up to 11 pallets and max. four machines with two setup stations
- Operate via machine HMI or via the DMGMORI master computer HMI
- MCC-TMS tool management system
LPP
Advanced pallet storage solution for up to 8 machines and 99 pallets
- Handling of workpieces up to ø 3,400 x 2,000 mm, 10,000 kg
- Very flexible pallet pool system with up to 8 machines, 99 pallets and 5 setup stations
- Handling of up to three different pallet sizes possible in one system (2 sizes for machine pallets and one size for material pallets)
- Control directly via DMG MORI master computer software LPS
- Integration into customer network / workflow possible
- Monitoring and management tools for all relevant areas (planning, workpieces, clamping, tools, etc.)
- Tool management system MCC-TMS
AMR 2000
Holistic automation on the shop floor
- Collaborative automation solution with free layout design
- Omnidirectional movement for minimal space requirements (turning radius 0m)
- Basis for additional tasks, e.g. B. tool handling, chip disposal, etc.
- Material transport from Euro pallets 1,200 x 800 mm
- Maximum transport weight of up to 2,000 kg
- Security based on Sick and Siemens technology
Highlights
AMR 2000 Material
- Autonomous transport of material pallets
- Load capacity up to 2000 kg
- Compact and manoeuvrable
- Integration into existing processes
AMR 2000 chips
- Autonomous transport of chip trolleys
- Automatic pick-up order from the DMGMORI master computer
- Integration into existing material processes
- Extension of machine tool autonomy over the night or weekend
- Fleet ready
AMR 2000 tool handling
- Tool identification in the standard
- Quick installation of the automation system
- Reliable technology with proven components
- Integration into existing production possible
- Max. tool dimensions ø 280 / 400 mm
- Max. tool weight 30 kg
- Transport weight 720 kg (24× 30 kg)
- Maximum number of tools: 24 pcs
PH-AMR
Pallet automation with maximum flexibility through free layout design
- Modular concept with flexible layout design
- Driverless transport systems without guide rails or tracks
- Collaborative: Man and machine in one system
- Navigation through natural navigation
- Pallet sizes from 500 × 500 mm to 1,600 × 1,250 mm
- Workpieces up to 5,000 kg and ø 1,600 mm
Highlights
Free accessibility
- Best visibility into the workspace at any time
- Manual or crane loading still possible
- Collaborative system – man and machine in one system
Modular concept with free layout design
- No safety housing for the automation system necessary
- Free positioning possibility of the individual modules
- Subsequent integration into existing production
Simple expansion of automation system
- Additional shelf modules to increase the number of storage places
- Additional AMRs can be integrated in the system
- Machines with an automation interface can be integrated very quickly afterwards
Minimum space requirement
- Free pallet handling system without fixed installation requirements on hall floor
- AMR paths remain walkable and passable
- Laser scanners guarantee personal protection in driving direction
- Omnidirectional movement for minimum space requirements (turning circle 0m)
- Flexible automation concept - Automation of different machine types with one system
Control & Software
Interpolation turning 2.0 – turning recessing cycle
- With interpolation turning, the tool cutter follows a circular movement, where the cutter is always oriented towards the center Of the circle.
- Possible for external and internal machining
- Synchronization and tool path controlled by the cycle
- NEW: in version 2.0 complex turning contours are possible (currently only available on the DMU 50, other machine types will follow)
Highlights
Customer benefits
- Easy manufacturing of sealing surfaces where milling operation might not be possible.
- Complete component processing in one clamping possible
- Reduced investment costs for tools
W-Setter
- Manual tool length measurement and workpiece centering in simple steps
- Guided instructions in the measurement. Short set-up times with high operational safety
Highlights
Customer Benefits
- Shorter set-up times
- No great experience necessary to take Measurements
Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.
Efficient Production Package
- Solutions for a safe process and for the efficient use of important machining steps
- Applications: cone cleaning, tool data monitoring, safe withdrawal movement, tapping, deep hole drilling, external thread and spigot milling, internal thread and circular milling, reverse countersink cycle
- 12 stored machining strategies for stock removal, deep hole drilling, Pocket milling machines*
Highlights
Customer Benefits
- Runtime optimization according to individual application
- Safe retraction after program break
- Tool data monitoring
Left : Input mask for universal cycle pocket milling. / Right : Input mask for tapping cycle
Retraction Cycle
- By pushing the associated key the X- axis and the Y-axis travel to the positive end-positions for external machining
- Ideally suited to prepare the work space for set-up and alternatively also as an emergency rescue function.
Highlights
Customer Benefits
Functionality - Selection of the cycle by pressing the associated key on the operating panel
- Easy operation when setting up multi - channel machinery
- Possibilty of a fast response during external machining as a rescue function
Easy Tool Monitor 2.0
- Prevention of damage due to tool breakage or tool overload
- Sensorless with automated learning of load limits
- For turning, milling and drilling (up to 3 mm diameter)
- NEW: User interface on CELOS SideScreen
- NEW: Powerful algorithm for efficient monitoring after the first workpiece
Highlights
Customer Benefits
- Protection Package: Perfect supplement to MPC Lathes. Price advantage (approx. 40%)
- Save the monitoring limits for each tool and every cutting edge in the program
Left : LIVE status display in CELOS Sidescreen; current, set process values. / Right : Easy operation of the monitoring parameters in the tool table.
AI Chip Removal
- Intelligent algorithms detect chip nests and control the moving rinsing nozzles during the machining
- Continuous optimization of the flushing strategy with a simple operation
Highlights
Customer Benefits
- Resource-saving due to the precise control of the rinsing nozzles
- Manual rinsing of the machine room by employees significantly minimized
- No machine downtime for machine room cleaning
Live view of the machine room in CELOS / Optimization of the cleaning movement with gesture control / Recording function of the camera simplifies the optimization process
MPC 2.0 – Machine Protection Control
- Vibration monitoring in the process
- Rapid shutdown in case of a crash
- Manual retraction even in swiveled machining plane
- NEW: Torque monitoring
- New: Recommended with Protection Package for CTX TC machines
Highlights
Customer Benefits
MPC Graph: current and learned process values. / MPC Diagnostics: stock condition, number of impact and crash.
- Avoiding tool breakage
- Increase in machine availability
- Damage reduction
Application Tuning Cycle
- Process-oriented adjustment of the feed rate n relation to the table loading
- Minimization of machining time with maximization of the component quality
- NEW: Now also available for CTX TC. Ideal machining result with the highest machine dynamics*
*without consideration of feed weight
Highlights
Customer Benefits
- User friendly setting of the machine dynamics with included DMG MORI knowhow
- Time saving in roughing
- High surface finish during finishing
Left : ATC 2.0 – Milling: Consideration of table loading. / Right : ATC – Turning: for CTX TC for easy adjustment of the machine dynamics.
MVC – Machine Vibration Control
- Vibration sensors in the milling spindle
- Various indicators to display the vibration status
- New machining proposal to reduce vibrations
- With the edit function, the new machining state is easily applied to your program
Highlights
Customer Benefits
- More productive cutting condition with less vibration
- Automatic suggestions for suitable process parameter
- The simple visualization serves as an orientation aid for machine operators
Left : Status display of the process vibrations in CELOS. / Right : Algorithms for the automatic recognition of regenerative vibrations.
Service & Training
Downloads & Technical Data
Workpiece
Max. workpiece diameter
2,000 mm
Max. workpiece height
1,600 mm
Max. workpiece weight
3,000 kg
Work Area
Max. X-axis stroke
1,700 mm
Max. Y-axis stroke
1,400 mm
Max. Z-axis stroke
1,510 mm
